Preparing public and private keys and generating RSA key

There are various ways to create certificates but we are using IIS Manager to create self-signed certificates. Steps to do is shown below:

1. Open IIS
2. Select  the server node on the left
3. Open “Server Certificates” in the features view
4. Click “Create Self Signed Certificate” on the right-side panel
5. Choose a certificate name and click OK
6. Double click the certificate you just created
7. On the details tab (in popup UI) click “Copy to file”
8. Click next
9. Now to create public or private key certificate follow following steps:

i. Public Key Certificate

1. Select “No, do not export the private key” and click next
2. Leave “DER encoded binary” selected and click next
3. Choose a path and provide filename to save it to and click next then finish

ii. Private Key Certificate

1. Select “Yes, export the private key” and click next
2. Leave “Personal Information Exchange” selected and click next
3. Provide password and click next (remember password as you will need it later)
4. Choose a path to save it to and click next then finish

                     iii. Get private key from Private Key Certificate

1. Use OpenSSL to get the RSA private key from the private key certificate. Download the OpenSSL of required (latest) version from: http://slproweb.com/products/Win32OpenSSL.html
2. Install OpenSSL
3. Go to the bin directory in the installation location. For example:    C:\OpenSSL-Win32\bin
4. Open openssl.exe

(Note: if OpenSSL doesn’t open properly then skip following steps and  follow the Alternative Method found below this Annex)

5. Execute command shown below to convert PFX to PEM pkcs12 -in <pfx file>  -out <PrivateKey.key> -nodes For example:

OpenSSL pkcs12 -in D:\IdP\private-key-certificate.pfx -out D:\IdP\PrivateKey.key -nodes

6. Open the PrivateKey.Key file. If the file has  “BEGIN RSA PRIVATE KEY”  and “END RSA PRIVATE   KEY” then skip step #7 and go to step #8. Otherwise, continue with step #7.
7. Execute command shown below to get RSA private key. rsa -in <Privatekey.key>  -out <RSA_Privatekey.key>

 For example:

OpenSSL> rsa -in D:\IdP\PrivateKey.key   -out  D:\ IdP\RSA_PrivateKey.key

NOTE:  All the  text between “BEGIN RSA PRIVATE KEY”  and “END RSA PRIVATE KEY” is the required private key. By default, keys are on different lines

8. Get all private key characters on the same line and copy.
9. Open the VenioSetup.ini file found in API and paste the key to set the value of “IdP_Privatekey.” For example :

[IDP Settings]

SP_Issuer= http://192.168.169.98/VenioWeb

IdP_Privatekey =

MIIEowIBAAKCAQEA6N2zSEdXFRIx3ERt4H3ubQ6muSBODAusMx8o7GzrgJbNciGJjaVjRx6OIVN2nZ VEL5dDGn6+yc7ohFlz/Lf4Dk6s

Alternative Method (if OpenSSL doesn’t open properly)

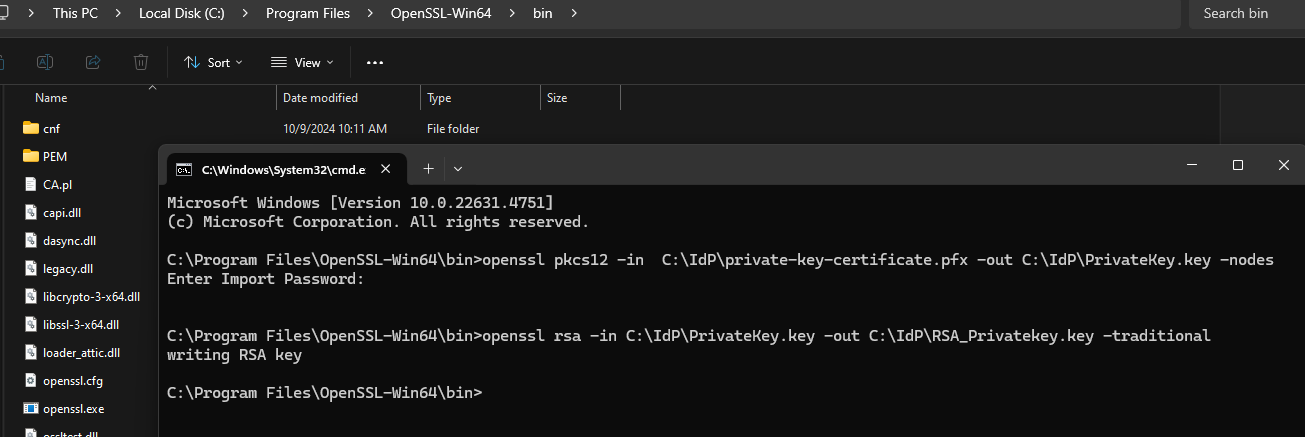

1. Open Command Prompt (cmd) and run following OpenSSL commands directly

to convert PFX to PEM

openssl pkcs12 -in  <pfx file> -out <PrivateKey.key> -nodes

For example:  openssl pkcs12 -in  C:\IdP\private-key-certificate.pfx -out C:\IdP\PrivateKey.key -nodes

2. Open the PrivateKey.Key file. If the file has  “BEGIN RSA PRIVATE KEY”  and “END RSA PRIVATE   KEY” then skip step #3 and go to step #4. Otherwise, continue with step #3.
3. Execute command shown below to get RSA private key.

openssl rsa -in <Privatekey.key> -out <RSA_Privatekey.key> -traditional

 For example:

openssl rsa -in C:\IdP\PrivateKey.key -out C:\IdP\RSA_Privatekey.key -traditional

NOTE:  All the  text between “BEGIN RSA PRIVATE KEY”  and “END RSA PRIVATE KEY” is the required private key. By default, keys are on different lines

4. Get all private key characters on the same line and copy.
5. Open the VenioSetup.ini file found in API and paste the key to set the value of “IdP_Privatekey.” For example :

[IDP Settings]

SP_Issuer= http://abc.veniosystems.com/Venioweb

IdP_Privatekey =

MIIEowIBAAKCAQEA6N2zSEdXFRIx3ERt4H3ubQ6muSBODAusMx8o7GzrgJbNciGJjaVjRx6OIVN2nCg/4Z3p1Su/Dth5H7xmX93z00eJvSllKPcu3V7haPAJEeqUUpyI6RDt63tkMtGy1zOz6dR8qYvbi5zlo4qGi2amD7jFb4wNnU2Y/Chf1MhyVG7BwFEy0dQTyg/cRr/eCnZ VEL5dDGn6+yc7ohFlz/Lf4Dk6s
